DJI Matrice 300 Series Part 18: CSM Radar

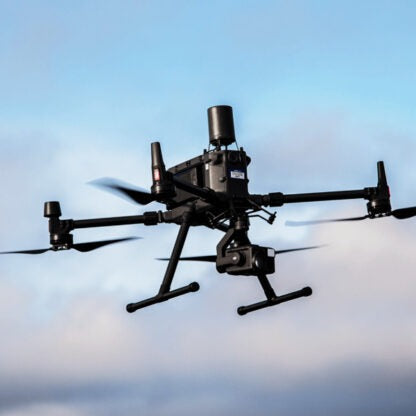

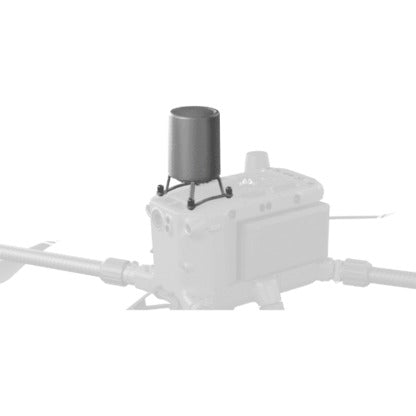

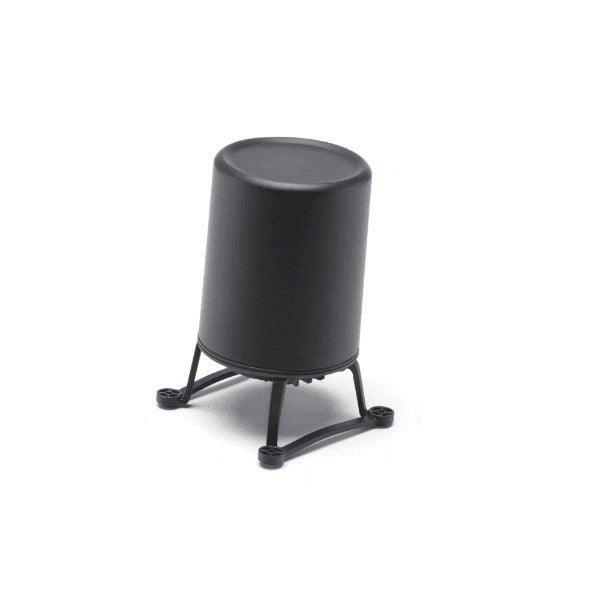

The Circular Scanning Millimeter-Wave (CSM) Radar is an advanced, add-on object detection system designed for the DJI Matrice 300 RTK. Ideal for low-visibility conditions, including night operations, this radar effectively detects thin obstacles such as wires, power lines, and tree branches — enhancing both flight safety and situational awareness.
Key Features:
-
Detect Thin Obstacles: Reliably identify narrow obstacles like wires, cables, and branches, ensuring safer navigation in complex environments.
-
Enhanced Situational Awareness: The CSM Radar supplements the M300 RTK’s built-in six-direction obstacle sensors, covering potential blind spots for all-around protection.
-
Comprehensive Detection Coverage:
-
Range: 1.5 to 30 meters (5 to 98 feet)
-
Coverage Angles: 360° horizontal, 60° vertical, and 45° upward
-
Obstacle Braking & Warning System:
-
Optimized for Night Operations: Functions effectively in low-light or nighttime conditions when the drone’s vision sensors are inactive.
-
Durable & Robust: Built tough with an IP45 rating, matching the drone's resilience for dependable use in challenging environments.
