Light Up the Night

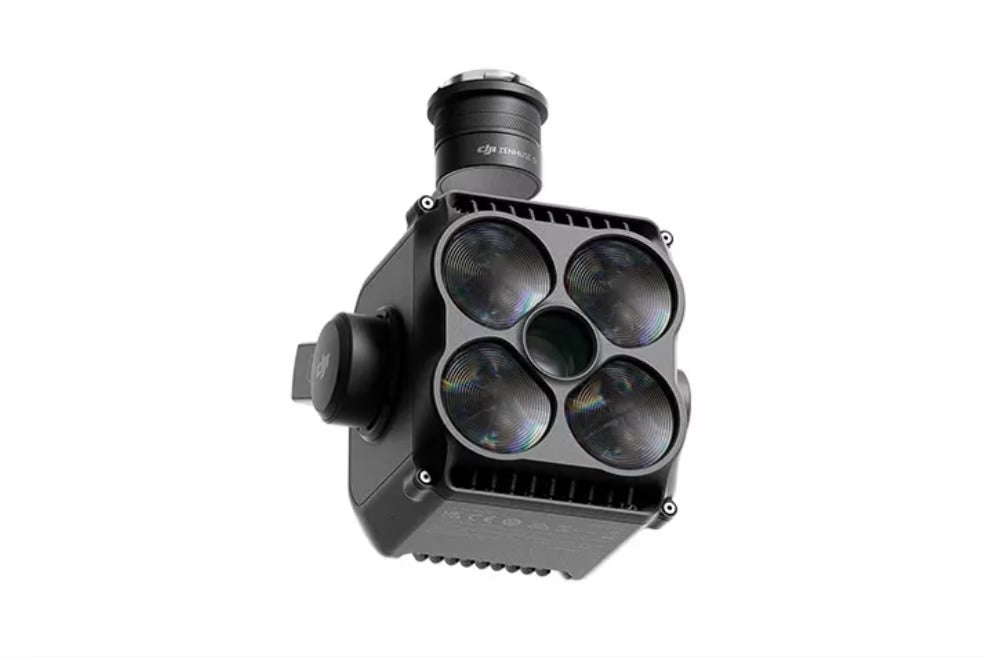

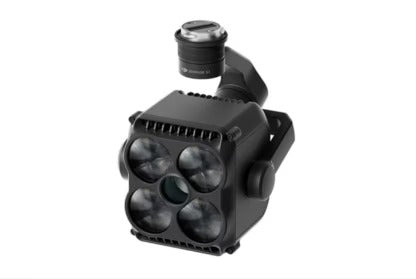

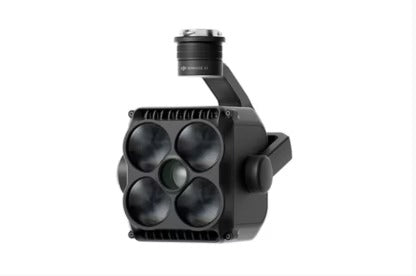

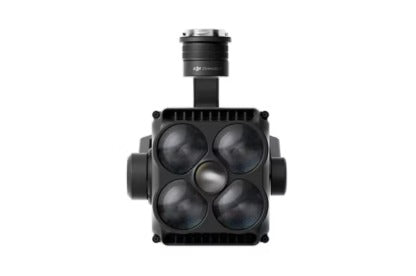

The Zenmuse S1 is DJI’s first spotlight tailored for multi-payload drone platforms, compatible with the Matrice 350 RTK and Matrice 300 RTK. Leveraging LEP (Laser Excited Phosphor) technology, it offers exceptional brightness and a long illumination range. With multiple lighting modes, it's ideal for operations such as public safety, emergency rescue, and nighttime inspections.

Versatile Lighting Modes

• Low Beam Mode:
  Provides a 15° field of view (FOV) within 150 meters, perfect for short-distance searches or inspections. This mode is suitable for tasks requiring 5x zoom or higher.

• High Beam Mode:
  Using LEP technology, this mode offers a 4° FOV and reaches up to 300 meters, covering the range for 15x zoom cameras and improving efficiency in emergency and rescue operations.

• Both On Mode:
  Combines the Low and High Beam modes for enhanced central illumination. It maintains the Low Beam’s FOV while extending the range up to 500 meters, providing maximum coverage for comprehensive situational awareness.

Efficiency Meets Power

The Zenmuse S1 delivers a maximum central illuminance of 35 lux at 100 meters, ensuring clear visibility in dark conditions. The High Beam mode consumes only 17W, optimizing the drone's energy use to maintain flight time without compromising performance.

Reliable, User-Friendly Design

• Payload Protection:
  Equipped with safeguards for temperature, overcurrent, and power protection, Zenmuse S1 enhances both reliability and longevity.

• Eye Protection:
  To prevent glare, the light automatically dims to 40% brightness when the drone is idle, protecting the operator’s vision.

• Burn Protection:
  Featuring a plastic casing, Zenmuse S1 maintains a safe surface temperature of 50°C (122°F) or less, effectively reducing the risk of burns.

• Environmental Adaptability:
  With an IP54 rating, Zenmuse S1 is resistant to dust and water and operates reliably in temperatures ranging from -20°C to 40°C (-4°F to 104°F).

• Intuitive Remote Control:
  The spotlight supports customizable shortcuts for easy operation, including brightness adjustments, light activation/deactivation, and mode switching, significantly enhancing operational efficiency.

Additional Features

• Strobe Mode:
  A high-frequency strobe light can be activated, drawing attention and signaling for help in emergency or public safety situations.

• Flexible Mounting & Compact Design:
  Weighing only 0.76 kg, Zenmuse S1 is lightweight and versatile, mounting easily to a single downward gimbal, dual downward gimbals, or a single upward gimbal for diverse operational needs.

• Mobile SDK:
  The Mobile SDK enables integration of Zenmuse S1’s features into custom apps, empowering developers to unlock tailored functionalities for specialized missions.

Notes

1. Specifications are measured in a lab environment at 25°C (77°F) with the Zenmuse S1 installed on the drone.

2. Measurement errors may vary by ±1° for Low Beam mode.

3. Measurements assume usage with Zenmuse H20 Series or Zenmuse H30 Series cameras.

4. High Beam mode has a ±0.5° measurement error.

5. The 35 lux measurement is based on the Both On Mode at 100 meters.

6. Power consumption (17W) is measured in High Beam mode under static conditions.

7. Plastic casing with most components made from metal.

8. The IP54 rating is effective under lab conditions, but may degrade over time.

9. Net weight is 760 g ±10 g (excluding carrying case).
